Dialogue box
A template is everything about a dialogue box: which parts it has, how they are painted, and how it animates. It is one thing you pick, not two.
There used to be two
A presentation chose a scene and a style painted it, each with its own resolution chain doing the same job. They were never two architectures — the two built-in scenes shared one base class and differed only by having a dialogue visual or a tail. So the parts are settings now.
The workflow
Choose a preset → Edit with live preview → Save as Shared…No scene to build, no script to write, no interface to implement.

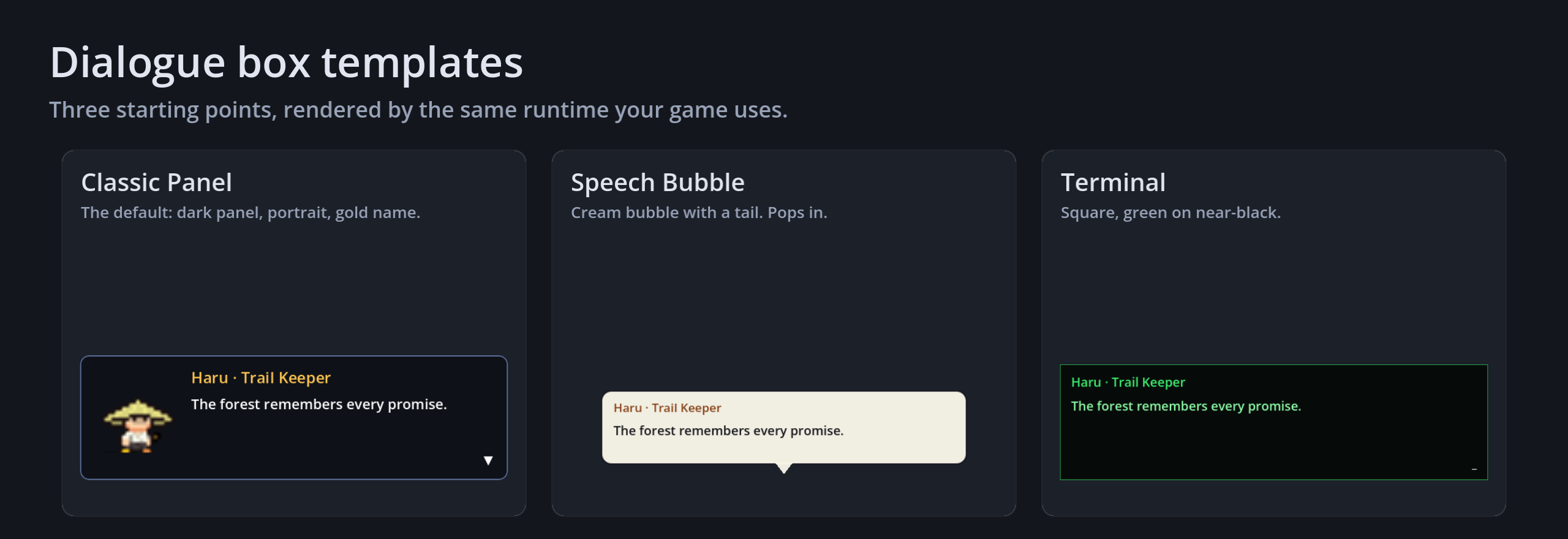

Three ship with the addon
gd
extends Node
## Docs: /guide/dialogue-box — what the box is and how it looks.
func _ready() -> void:
_build()
#region template
# Three templates ship with the addon. None bundle a font or a texture, so
# they inherit whatever font your project already uses.
func use_a_template(talk: NPCTalkKit) -> void:
# A typed array, because that is what the node carries. Assigning a bare
# `[...]` through an untyped `$NPCTalkKit` fails at run time, not compile.
var boxes: Array[TalkBoxTemplate] = [
preload("res://addons/npc_talkkit/templates/terminal.tres")]
talk.dialogue_boxes = boxes
#endregion
#region share
# A style is an ordinary Resource. Save one as a .tres, assign it to twenty
# NPCs, edit it once, and all twenty change. Godot's Make Unique lets one of
# them diverge. There is no TalkKit-specific sharing mechanism to learn.
func share_one_template(npcs: Array[NPCTalkKit], template: TalkBoxTemplate) -> void:
var boxes: Array[TalkBoxTemplate] = [template]
for npc in npcs:
npc.dialogue_boxes = boxes
#endregion
#region tweak
# Styles hold appearance only — no target, no NodePath, no per-character data.
# That is what makes sharing safe.
func warm_up_the_box(template: TalkBoxTemplate) -> void:
# The Panel's Base Appearance is a plain Godot StyleBoxFlat.
var panel := template.base.style as StyleBoxFlat
panel.bg_color = Color(0.14, 0.09, 0.06, 0.96)
panel.border_color = Color(0.82, 0.58, 0.28)
panel.set_corner_radius_all(18)
template.text_size = 21
template.open_transition = "slide"
template.transition_duration = 0.22
#endregion
#region chain
# Two levels, and only two:
#
# line.dialogue_box → conversation.default_dialogue_box
#
# A conversation says once which box paints it. A line says so only when it is
# the exception — a flashback, an interruption — and the line after it goes
# back to the default without being told to.
func use_another_box_for_one_line(line: TalkLine, flashback: TalkBoxTemplate) -> void:
line.dialogue_box = flashback
func use_another_box_for_a_conversation(conversation: TalkConversation, warning: TalkBoxTemplate) -> void:
conversation.default_dialogue_box = warning
#endregion
#region theme
# Already have a UI theme? Assign it and the box stops overriding fonts, sizes
# and text colours, so your theme wins. The Panel, padding and layers always
# apply: a Theme styles the text, never removes the frame.
func follow_the_project_theme(template: TalkBoxTemplate, theme: Theme) -> void:
template.theme = theme
#endregion
#region nine_slice
# A frame from an asset pack: the Panel's Base Appearance becomes a nine-slice.
# Scale keeps pixel art crisp; padding follows the frame's margins unless set
# to Custom.
func use_a_pixel_frame(template: TalkBoxTemplate, frame: Texture2D) -> void:
template.base.visual_source = TalkBoxLayer.Source.NINE_SLICE
var panel := template.base.style as StyleBoxTexture
panel.texture = frame
panel.set_texture_margin_all(8)
template.base.scale = 3
template.base.filter = CanvasItem.TEXTURE_FILTER_NEAREST
#endregion
#region layers
# Layers decorate the Panel, the Speaker Name and the Dialogue Visual. Each
# draws a native resource: here an AtlasTexture region in a corner, and a
# StyleBoxFlat name box behind the name.
func add_an_ornament_and_a_name_box(template: TalkBoxTemplate, ornaments: Texture2D) -> void:
var gem := AtlasTexture.new()
gem.atlas = ornaments
gem.region = Rect2(0, 0, 16, 16)
var corner := TalkBoxLayer.new()
corner.name = "Top Left Ornament"
corner.position = TalkBoxLayer.Position.TOP_LEFT
corner.depth = TalkBoxLayer.Depth.ABOVE
corner.visual_source = TalkBoxLayer.Source.IMAGE
corner.texture = gem
corner.scale = 2
var name_box := TalkBoxLayer.new()
name_box.name = "Name Box"
name_box.slot = TalkBoxLayer.Slot.SPEAKER_NAME
name_box.depth = TalkBoxLayer.Depth.BEHIND
name_box.visual_source = TalkBoxLayer.Source.FLAT_STYLE
(name_box.style as StyleBoxFlat).bg_color = Color(0.48, 0.18, 0.11)
name_box.padding = Vector4(8, 2, 8, 2)
template.name_placement = TalkBoxTemplate.NamePlacement.TOP_EDGE
template.layers.append(corner)
template.layers.append(name_box)
#endregion
func _build() -> void:
var talk := NPCTalkKit.new()
talk.name = "NPCTalkKit"
add_child(talk)
func _verify() -> Array[String]:
var failures: Array[String] = []
var talk: NPCTalkKit = $NPCTalkKit
use_a_template(talk)
if talk.dialogue_boxes.is_empty():
failures.append("dialogue box: the preset did not load")
elif talk.dialogue_boxes[0].font != null or talk.dialogue_boxes[0].base.style is not StyleBoxFlat:
failures.append("dialogue box: a shipped template must bundle no font and no texture")
var style := _instant_box()
warm_up_the_box(style)
var painted := style.build_panel_style() as StyleBoxFlat
if painted == null or painted.get_corner_radius(CORNER_TOP_LEFT) != 18:
failures.append("dialogue box: the tweaks did not reach the generated StyleBox")
# A theme must actually win, or the escape hatch is decoration.
var label := RichTextLabel.new()
follow_the_project_theme(style, Theme.new())
style.apply_to(PanelContainer.new(), label)
if label.has_theme_font_size_override("normal_font_size"):
failures.append("dialogue box: paint overrides must stand down under a theme")
label.free()
# The resolution chain, end to end.
var conversation := TalkConversation.new()
conversation.conversation_id = &"tale"
var plain := TalkLine.new()
plain.text = "One."
var flashback := TalkLine.new()
flashback.text = "Two."
conversation.lines = [plain, flashback]
conversation.default_dialogue_box = style
talk.conversations = [conversation]
var owned: Array[TalkBoxTemplate] = [style]
talk.dialogue_boxes = owned
var memory := _instant_box()
use_another_box_for_one_line(flashback, memory)
talk.play(&"tale")
if talk._box.effective_template() != style:
failures.append("dialogue box: the conversation default should paint the first line")
talk.advance()
if talk._box.effective_template() != memory:
failures.append("dialogue box: a line override should paint its own line")
talk.stop()
# And the line after an override goes back to the default on its own.
var third := TalkLine.new()
third.text = "Three."
conversation.lines = [plain, flashback, third]
talk.play(&"tale")
talk.advance()
talk.advance()
if talk._box.effective_template() != style:
failures.append("dialogue box: the line after an override must return to the default")
talk.stop()
var warning := _instant_box()
use_another_box_for_a_conversation(conversation, warning)
talk.play(&"tale")
if talk._box.effective_template() != warning:
failures.append("dialogue box: changing the conversation default should repaint it")
talk.stop()
var framed := _instant_box()
var art := ImageTexture.create_from_image(Image.create_empty(24, 24, false, Image.FORMAT_RGBA8))
use_a_pixel_frame(framed, art)
if not framed.drawn_panel_style() is StyleBoxTexture or framed.effective_padding() != Vector4(24, 24, 24, 24):
failures.append("dialogue box: a nine-slice frame should pad by its margins at ×3")
add_an_ornament_and_a_name_box(framed, art)
if framed.layers_for(TalkBoxLayer.Slot.PANEL).size() != 1 or framed.layers_for(TalkBoxLayer.Slot.SPEAKER_NAME).size() != 1:
failures.append("dialogue box: the ornament and the name box should land on their slots")
var one := NPCTalkKit.new()
var two := NPCTalkKit.new()
share_one_template([one, two], style)
if one.dialogue_boxes != two.dialogue_boxes:
failures.append("dialogue box: sharing must hand both NPCs the same resource")
one.free()
two.free()
return failures
## Typing speed lives on the dialogue box now, so turning it off for a scripted
## run means handing the node a box that types instantly.
func _instant_box() -> TalkBoxTemplate:
var template := TalkBoxTemplate.new()
template.typewriter_speed = 0.0
return template| Template | Look |
|---|---|
classic_panel | The default. Dark panel across the bottom, speaker's visual, gold speaker name. |
speech_bubble | Cream bubble with a tail, no speaker visual, pops in. |
terminal | Square corners, green on near-black, no transition. |
None of them bundle a font or a texture, so they inherit whatever font your project already uses.
A panel and a bubble are the same renderer with different settings — one has a dialogue visual and a continue marker, the other a tail.
Zero configuration already looks right
Leave Dialogue Box empty and the Classic Panel is used. You never have to open this page to ship something presentable.
Making it yours

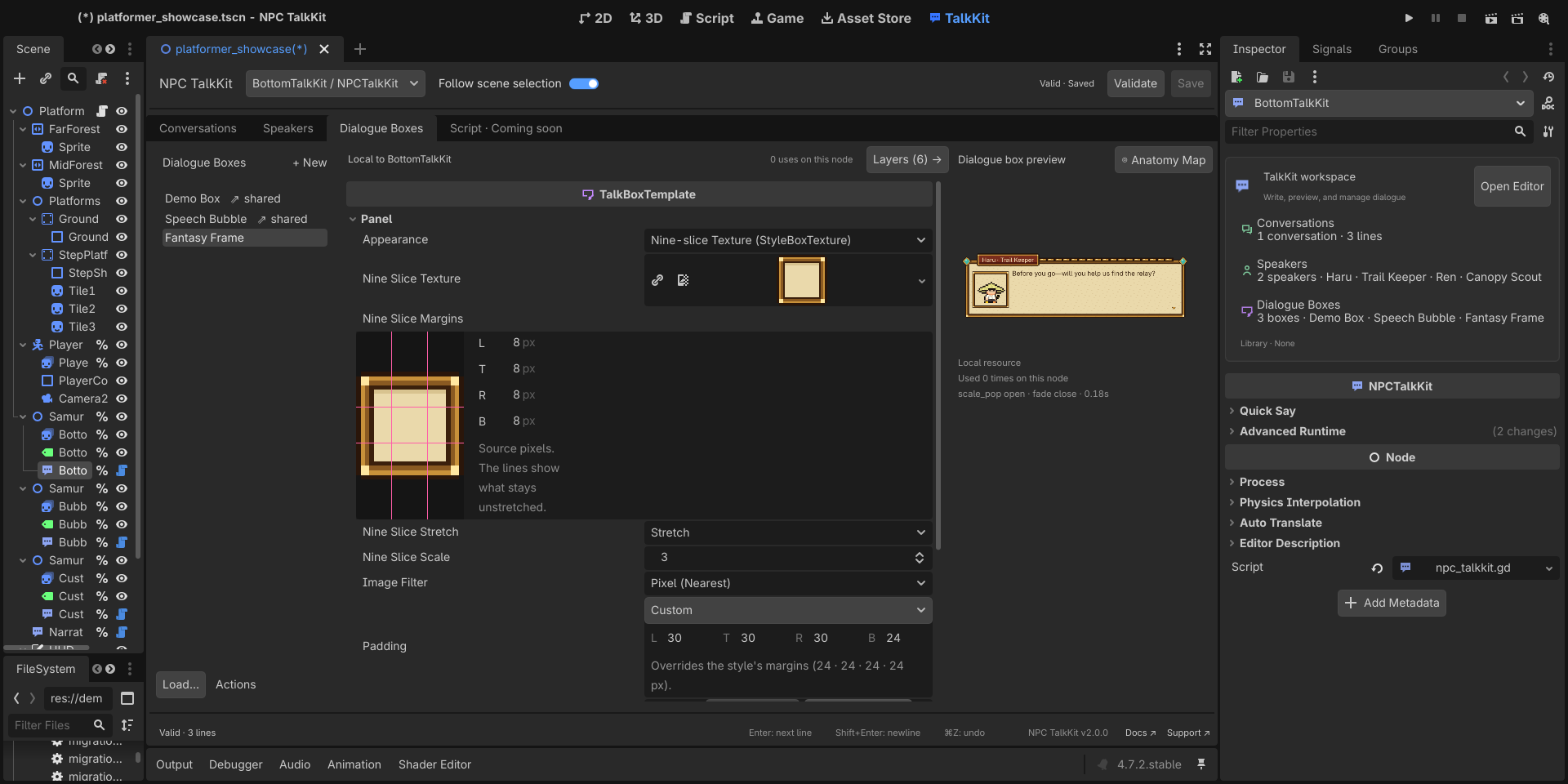

Open the Dialogue Boxes section of the TalkKit workspace. + New starts from a visual preset—Classic Panel, Speech Bubble, Terminal, or Blank Custom—rather than an empty wall of fields. Select a box to edit its task-oriented groups while the right pane renders a live sample.
Why presets come first
Most customization should start from a working look and change incrementally. Blank Custom remains available when you really want bare defaults.
